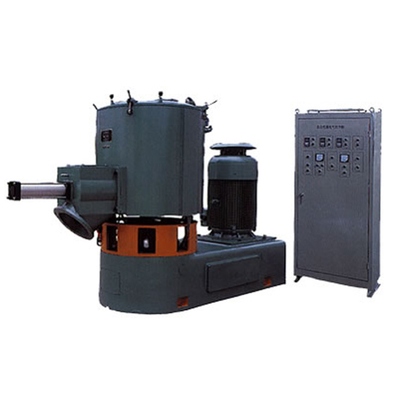

Description | The high speed plastic raw material mixer is for plastics, rubber, daily chemical industry and laboratory materials mixing,stiring, dry blasting, painting and other craft.The high speed plastic raw material mixer pot cover has applied dual sealing.Self-friction, electric heating and various heating methods.Discharge methods use automatic temperature control and manual control. The blade is whole Stainless steel cast, and refined through the static and dynamic balance test. | ||||||||||||
Total Volume | Effective Volume | Power | Shaft speed | Size | Heating method | Discharge | |||||||
SHR-5A | 5 | 3 | 1.1 | 1400 | 620*300*730 | Self-friction | Manual | ||||||
SHR-10A | 10 | 7 | 3 | 2000 | 1200*300*830 | Self-friction | Manual | ||||||
SHR-25A | 25 | 20 | 5.5 | 1440 | 1200*350*850 | Self-friction | Manual | ||||||
SHR-50A | 50 | 35 | 7/11 | 750/1500 | 2100*700*1100 | Electric | Pneumatic | ||||||
SHR-100A | 100 | 70 | 14/22 | 650/1300 | 2100*800*1510 | Electric | Pneumatic | ||||||
SHR-200A | 200 | 150 | 30/42 | 475/950 | 2400*850*1580 | Electric | Pneumatic | ||||||
SHR-300A | 300 | 225 | 40/55 | 475/950 | 2800*1080*1680 | Electric | Pneumatic | ||||||
SHR-500A | 500 | 375 | 47/67 | 430/860 | 3060*1150*1180 | Electric | Pneumatic | ||||||
SHR-800A | 800 | 600 | 83/110 | 370/740 | 3385*1380*2750 | Electric | Pneumatic | ||||||
SHR-1000A | 1000 | 750 | 110/160 | 325/650 | 3460*1140*2900 | Self-friction | Pneumatic | ||||||
Model | SHR-200A |
Total Volume | 200 L |
Effective Volume | 150 L |
Shaft Amount | 3 |
Shaft Speed | 475 / 950 rpm |
Heating Method | Electric and Self-friction |
Mixing Time | 6~10min/batch |
Drive Motor | Double speed motor |
Motor Power | 30 / 42 / 9 kw |
Motor Rotational Speed | 1475 rpm |
Voltage | 380 V |
Discharge Method | Pneumatic |
Dimension | 2400 X 850 X 1580 mm |
Vertical Electric Cabinet | 1 set |
Air Source | Compressed Air 0.39-0.49MPa |
Dimension of Vertical Electric Cabinet | 1100×450×1500 mm |
Dimension of Control Panel | 540×200×420 mm |
