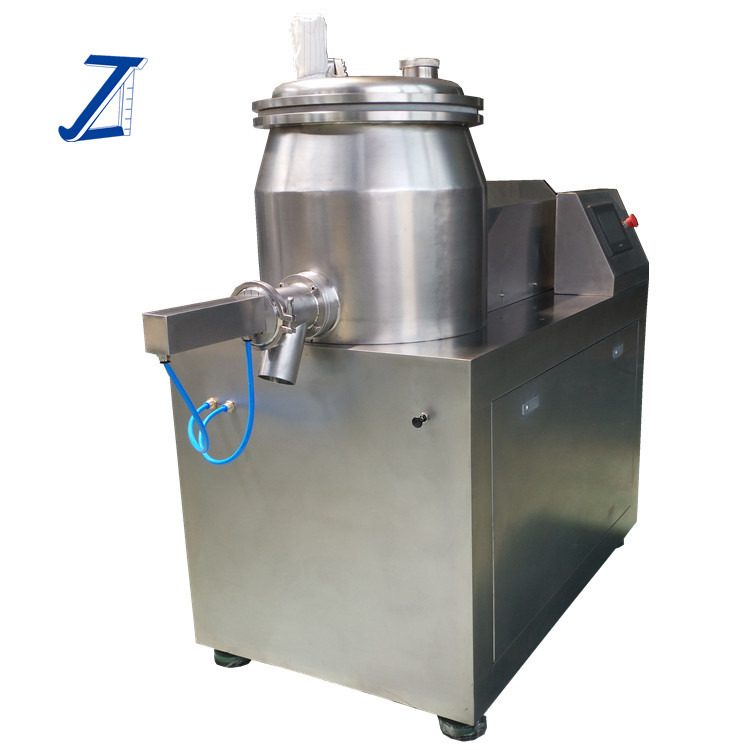

GHL Series High Speed Mixing Granulator
Main Application:
It is widely used for pharmaceutical, foodstuff and chemical industry applications. Dry mixing can be accomplished as rapid as about 2 minutes while wet granulation can be performed within 1-4 minutes.
Model | GHL-10 | GHL-50 | GHL-150 | GHL-200 | GHL-250 | GHL-300 | GHL-400 | GHL-600 | |||||||
Output(kg/batch) | 3 | 15 | 50 | 80 | 100 | 130 | 200 | 280 | |||||||
Agitator Motor (kw) | 1.5/2.2 | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 | |||||||
Agitator Speed(rpm) | 300/600 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 | |||||||
Chopper Motor(kw) | 0.85/1.1 | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 | |||||||
Chopper Speed(rpm) | 1500/3000 | ||||||||||||||
Overall Size(m) | 1.35*0.7*1.15 | 1.65*0.85*1.35 | 1.8*0.8*1.4 | 2.1*0.85*1.5 | 2.05*0.85*1.5 | 2.2*0.9*1.55 | 2.35*1.05*1.55 | 2.4*1.05*1.65 | |||||||
Weight(kg) | 280 | 450 | 720 | 1200 | 1450 | 1800 | 2100 | 2800 | |||||||
Junzhuo GHL high speed mixing granulator combines mixing, dispersing, and high-shear granulating into single operation with an optimal cycle time. Conical mixing structure helps preventing an adhesion of raw material and providing a smoother flow. Main agitator at the base works in conjunction with high shear chopper laterally located in the mixer wall. The incorporation of rotating elements force product to move intensively in both vertical and horizontal planes and homogenously mixed in short time.
Jiangyin Junzhuo Machinery Manufacturer Co.,Ltd offers a sophisticated lines of mixers, crushers, granulators and blenders to meet all requirements of cGMP. Our history starts in 2008, as an ever-evolving industry and a full-service provider, we are committed to delivering solutions for the pharmaceutical, nutraceutical, food, chemical and cosmetic industries.
Packing Details : International Wooden Case
Delivery Details : 15-30 Days After Payment
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the testing for free charge but do not pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 50% T/T in advance ,balance before shippment.
